MICRO 0180/0182/0184

MICRO 0180/0182/0184

Pitch
18 mm

Inner height
15 mm

Inner widths
10 - 40 mm

Bending radii
28 - 50 mm

Stay Variants

Stay Variants

0182
Non apribile (Forma 020)

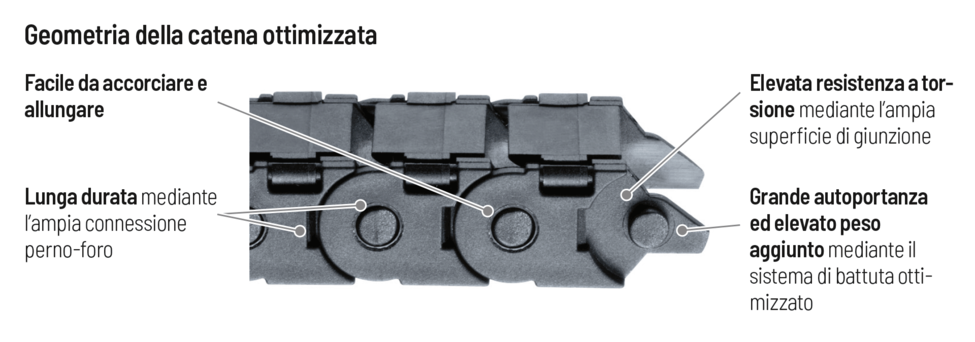

Traversino in poliammide non apribile, con peso ottimizzato ed elevata resistenza a torsione.
Esterno/Interno: non apribile.

more details

0180
Traversino apribile sul lato esterno (Forma 030)

Traversino in poliammide con peso ottimizzato ed elevata resistenza a torsione.
Apribile in qualsiasi posizione.
Esterno: apribile.

more details

0184
Traversino apribile sul lato interno (Forma 040)

Traversino in poliammide con peso ottimizzato ed elevata resistenza a torsione.
Apribile in qualsiasi posizione.
Interno: apribile.

more details

Installation dimensions

Installation dimensions

UNSUPPORTED ARRANGEMENT

KR [mm]	H [mm]	H_z [mm]	L_B [mm]	U_B [mm]
28	74	89	124	55
37	92	107	153	64
50	118	133	194	77

LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.

Sagging of the cable carrier is technically permitted for extended travel lengths, depending on the specific application.

Intrinsic cable carrier weight q_k = 0.25 kg/m with B_i 10 mm. For other inner widths, the maximum additional load changes.

[Translate to Italian:] [Translate to German:]

Speed
up to 10 m/s

[Translate to Italian:] [Translate to German:]

Acceleration
up to 50 m/s²

[Translate to Italian:] [Translate to German:]

Travel length
up to 1.5 m

[Translate to Italian:] [Translate to German:]

Additional load
up to 1.0 kg/m

GLIDING ARRANGEMENT

[Translate to Italian:] [Translate to German:]

Speed
up to 3 m/s

[Translate to Italian:] [Translate to German:]

Acceleration
up to 30 m/s²

[Translate to Italian:] [Translate to German:]

Travel length
up to 70 m

[Translate to Italian:] [Translate to German:]

Additional load
up to 1.0 kg/m

[Translate to Italian:] [Translate to German:]

The gliding cable carrier must be guided in a channel.

Only designs 020 and 030 can be used for a gliding arrangement.
