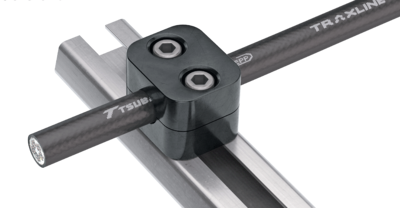

Block clamps

Properties

  • For strain relief of hoses.
  • With clamping screw(s) and support rail nut
  • Hoses and cables
  • For C-rails with slot widths of 11 mm and 16 mm

Technical data

Available sizes

Type

Material no.

for diameter
[mm]

Width B
[mm]

Height H
[mm]

BS 0.06

16701

6

28

27

BS 0.07

16702

7

28

27

BS 0.08

16703

8

28

27

BS 0.09

16704

9

28

27

BS 0.10

16705

10

28

27

Type BS 0

Suitable for C profiles with 11 mm slot (Article no. 3931, 3934, 3935, 3936) as well as for C-profiles with 16 mm slot (Article no. 3932, 3938, 3939)

Available sizes

Type

Material no.

for diameter
[mm]

Width B
[mm]

Height H
[mm]

BS 1.06

16706

6-7

37

27

BS 1.07

16707

7-8

37

27

BS 1.08

16708

8-9

37

27

BS 1.09

16709

9-10

37

27

BS 1.10

16710

10-11

37

27

BS 1.12

16711

12-14

37

27

BS 2.14

16712

14-16

42

33

BS 2.16

16713

16-18

42

33

BS 2.18

16714

18-20

42

33

BS 3.20

16715

20-22

50

36

BS 3.22

16716

22-23

50

36

BS 3.23

16717

23-25

50

36

BS 3.25

16718

25-27

50

36

BS 3.27

16719

27-30

59

42

BS 3.30

16721

30-34

59

42

BS 4.32

16722

32-34

59

42

BS 4.34

16723

34-36

71

56

BS 4.35

16724

35-37

71

56

BS 4.38

16725

38-40

71

56

BS 4.40

16726

40-42

71

56

BS 4.42

16727

42-44

71

56

BS 5.45

16728

45-48

86

66

BS 5.48

16729

48-51

86

66

BS 5.51

16731

51-54

86

66

Type BS 1 – BS 5

Suitable for C profiles with 11 mm slot (Article no. 3931, 3934, 3935, 3936) as well as for C-profiles with 16 mm slot (Article no. 3932, 3938, 3939)
