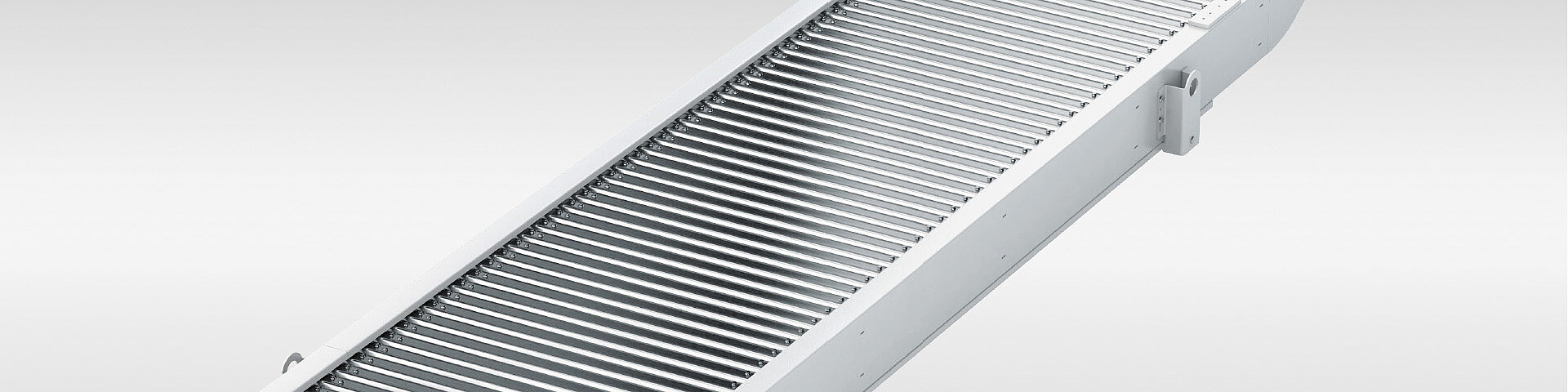

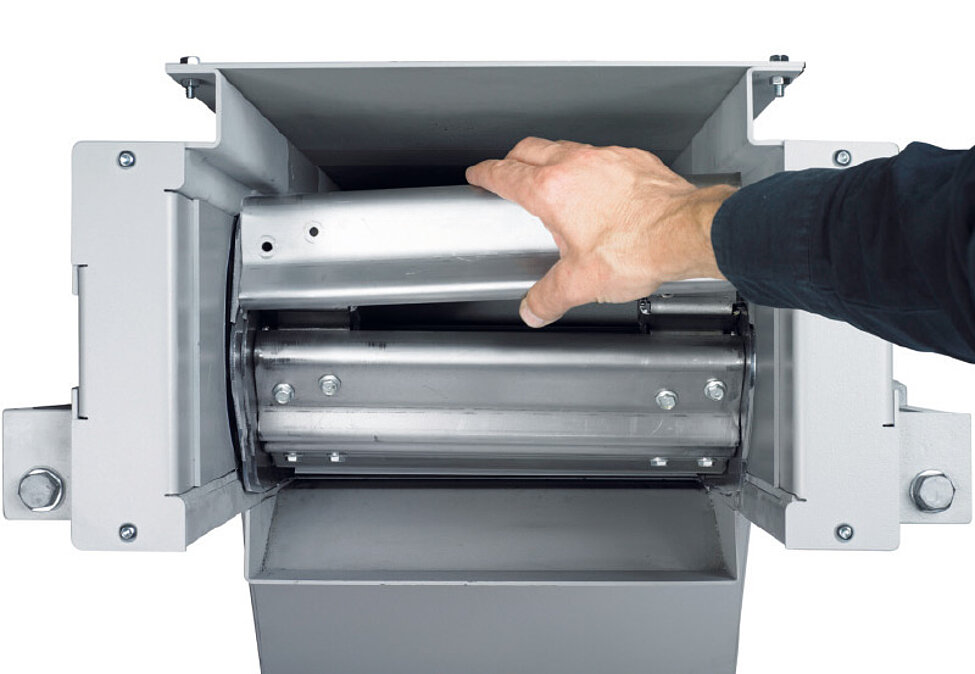

Wave-belt conveyors
No hinge - low wear

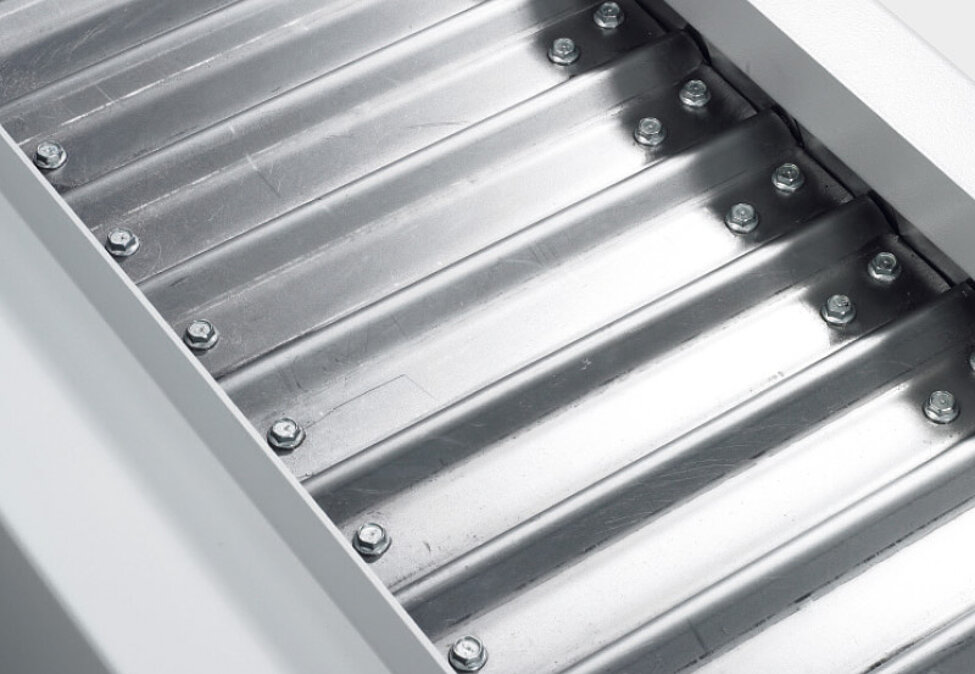

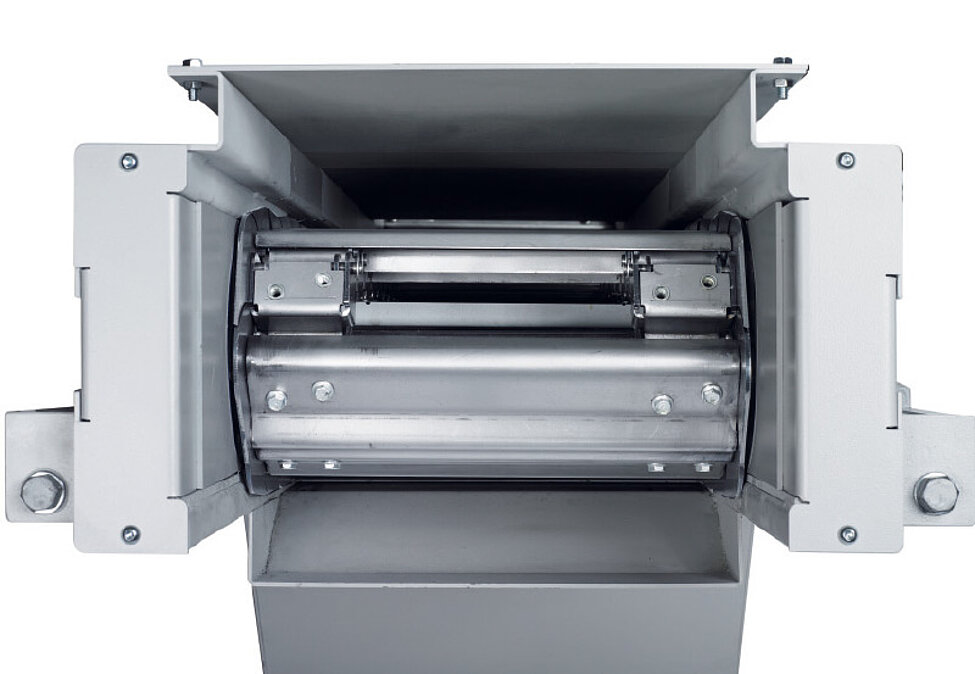

Chips and dirt can accumulate in the hinges in conventional hinged belts. The WAVE-BELT system is supplied without hinges on the top of the belt and is therefore smooth in this area. Chips and dirt cannot get jammed up. Due to the WAVE SHAPE of the belt plates, there is hardly any gap between the plates. This makes the belts denser, more durable and creates less maintenance. Further developed side boards avoid jamming of conveyed material and reduce the risk of wear and failure. The DST version is utilized as a standard application for the WAVE-BELT belt.
Structure
- Extremely stable due to the special shape of the panels
- Standardized housing cross-section with variable width
- Robust connect-in transmission motor with torque arm
- Customer-specific discharge height
- Customized incline angle - 15° and 30° as standard
- Floor-mounted or as an insert into the machine bed
Dimensions
Dimensions of conveyor housing
Possible inclines
Variable dimensions:
BSCH = Conveyor belt width
BK = Box width
BAG = Feed width
HB = Panel height
AAV = Distance between axles, vertical
LAG = Feed length
LAW = Discharge length
LG = Total length of the conveyor
α = Incline angle
Standard version
Design-dependent dimensions:
HK = Box height
HKE = Retracted box height
LA = Length of the tail (discharge, incl. tensioning distance)
LU = Length of the tail (feed)
The tensioning station is located at the discharge.
* The box height can be retracted on request.
Preferred dimensions
| Type | HB | HK | HKE* | LAW min | LA | LU | ||
|---|---|---|---|---|---|---|---|---|
| WBC 063 | 40 | 80 | 150 | 216 | 153 | 500 | 240 | 111 |
Dimensions of the WAVE-BELT
| Type | t | SSCH | HS |
|---|---|---|---|
| WBC 063 | 63 | 4 | 21 |
Definitions:
t = Pitch
BSCH = Conveyor belt width
SSCH = Plate thickness of the belt
HS = Height of the side board BK = Box width
BAG = Feed width
HB = Panel height
Dimensions as a function of the WAVE-BELT width
| Type | BSCH | BK | BAG |
|---|---|---|---|
| WBC 063 | 165 | 285 | 130 |
315 | 435 | 280 | |
415 | 535 | 380 | |
515 | 635 | 480 | |
615 | 735 | 580 | |
1065 | 1185 | 1030 | |
1665 | 1785 | 1630 | |
2115 | 2235 | 2080 |
