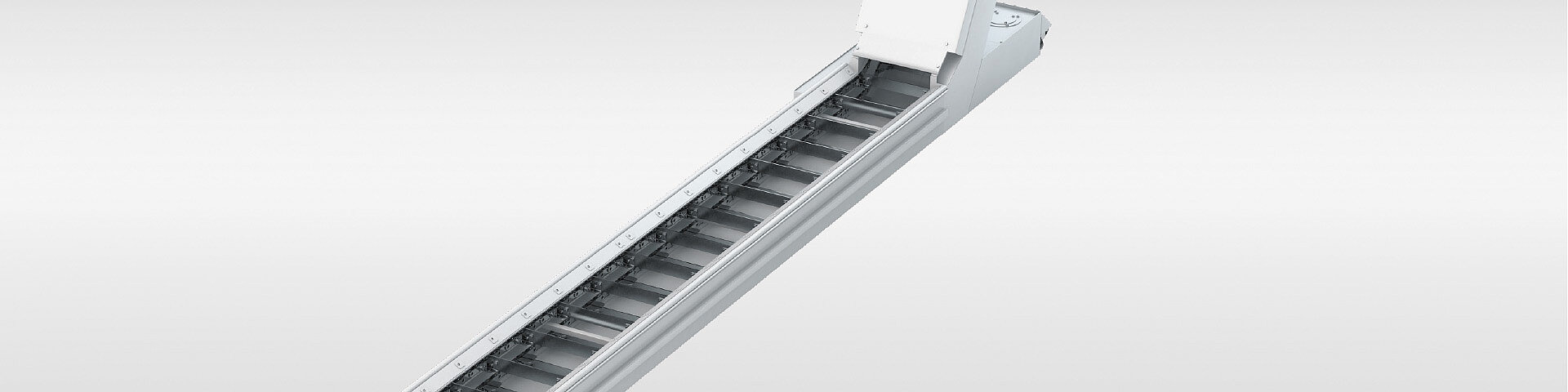

Scraper belt conveyors

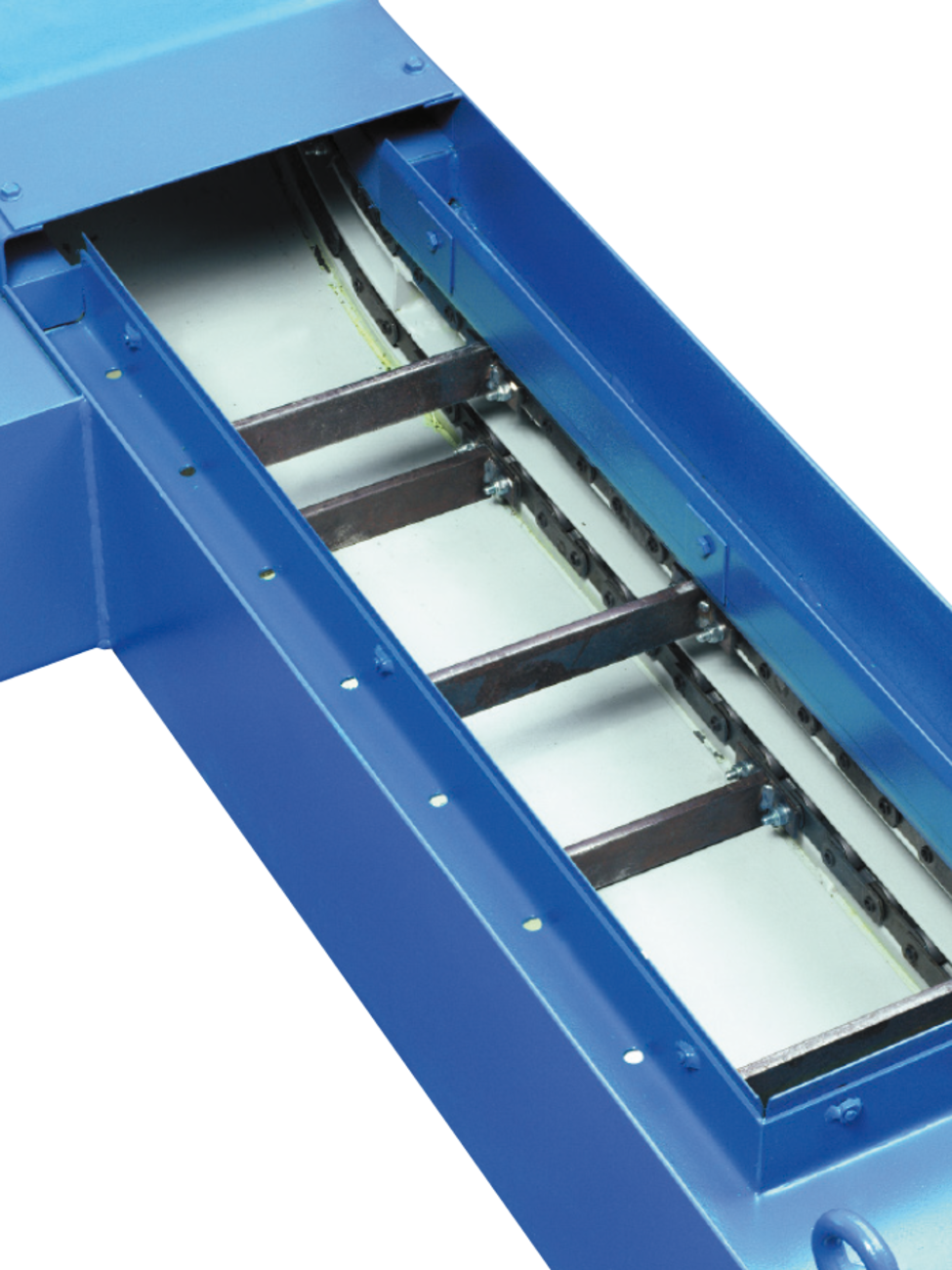

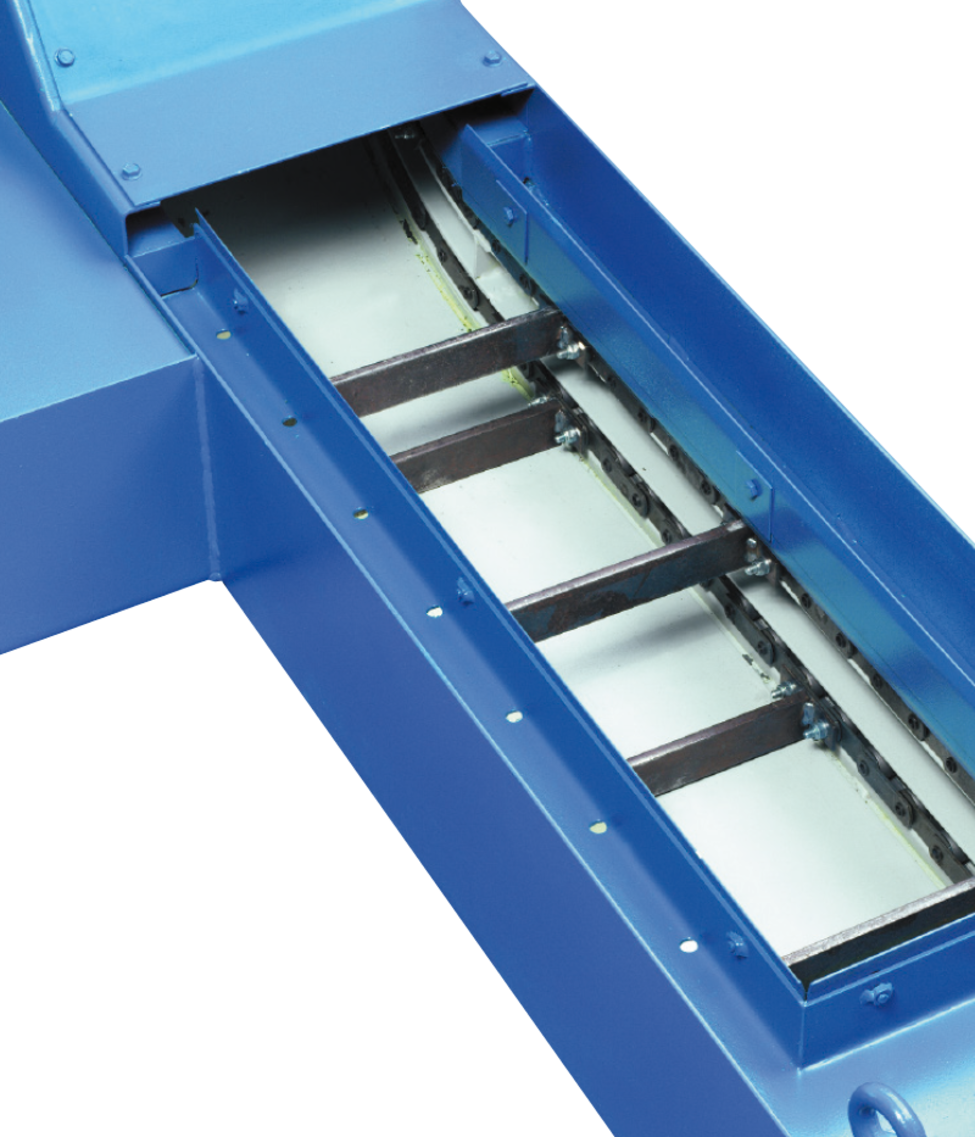

Transport of the material takes place via carriers which push the material along the floor of the housing towards the discharge. Cooling lubricants are collected in the conveyor housing and can be fed back into the machine circuit via an added-on container or a pumping unit. Our scraper belt conveyors can be used as stand-alone conveyors at machine tools or as linked conveyor systems. Depending on the design, the material to be conveyed is brought to the required height at a defined incline and then discharged.

Structure

Stable sheet metal construction
Standardized housing cross-section with variable width
Robust worm gear motor with torque arm
Customized discharge height

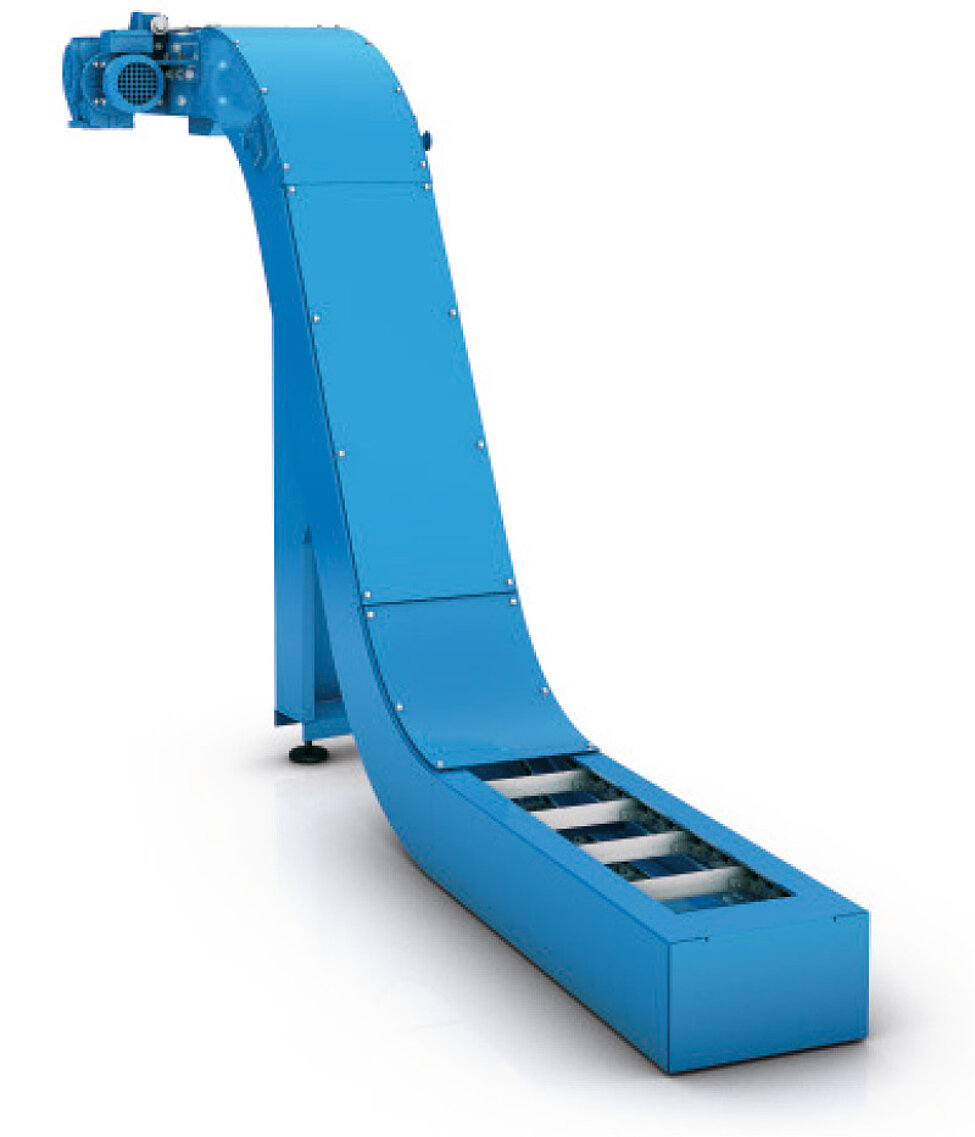

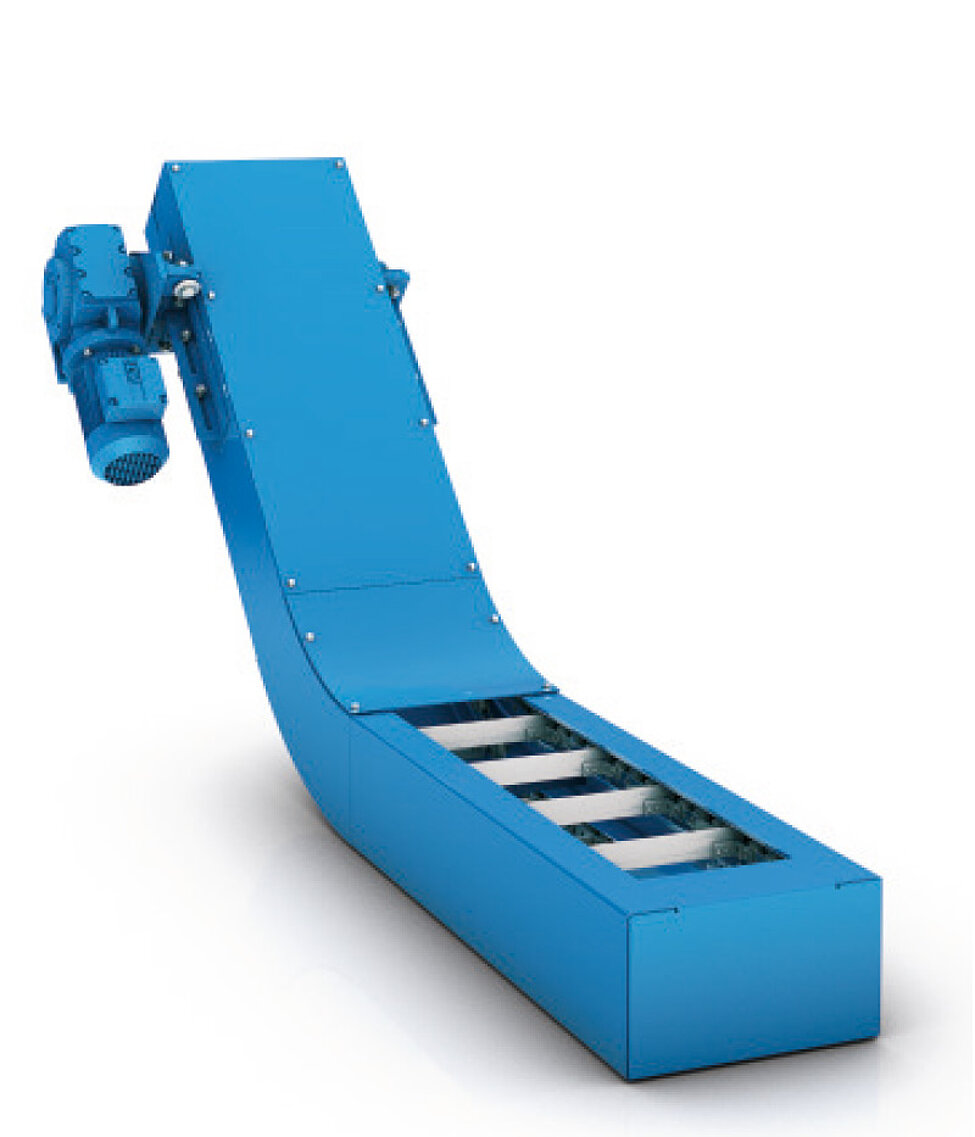

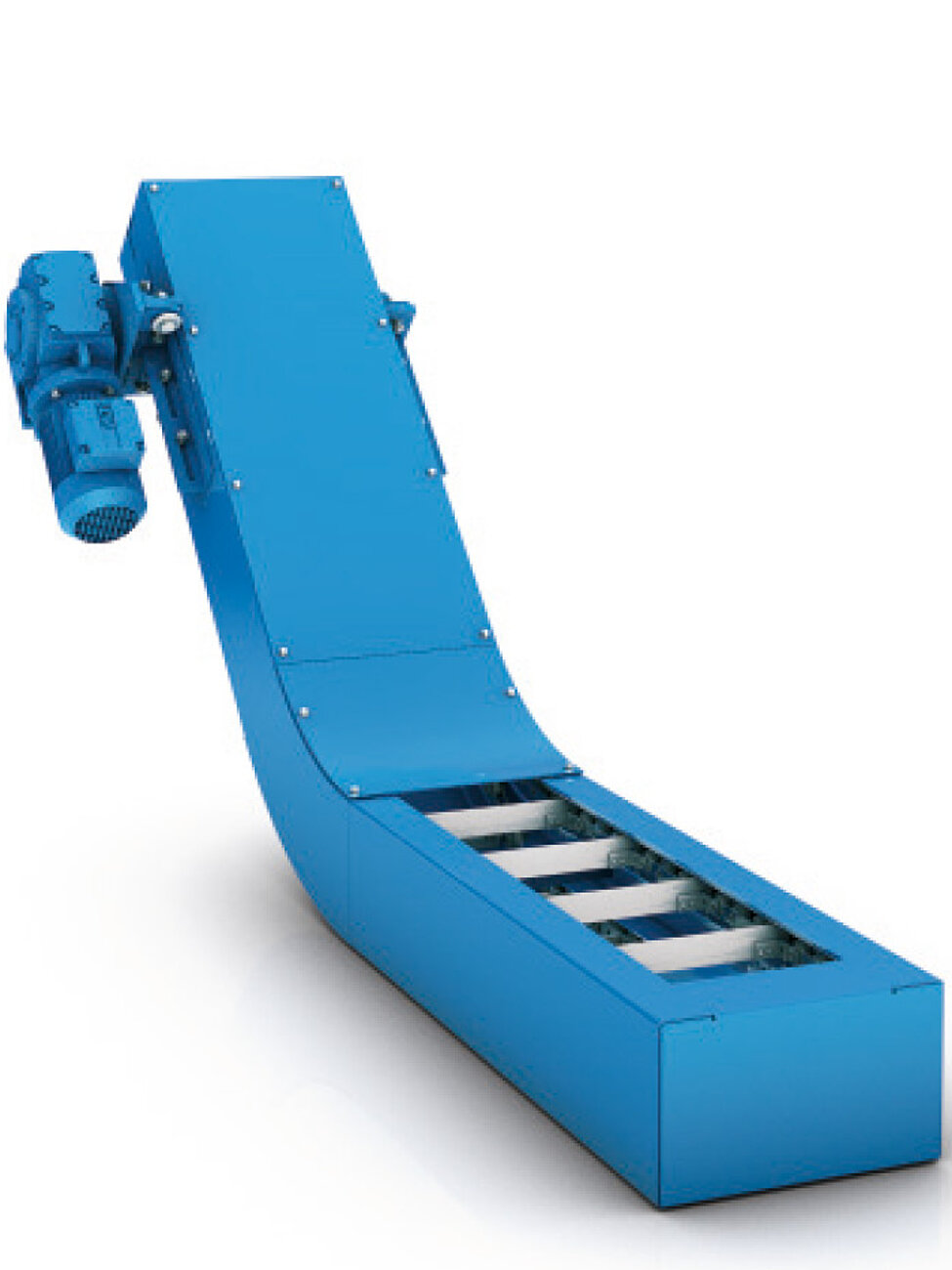

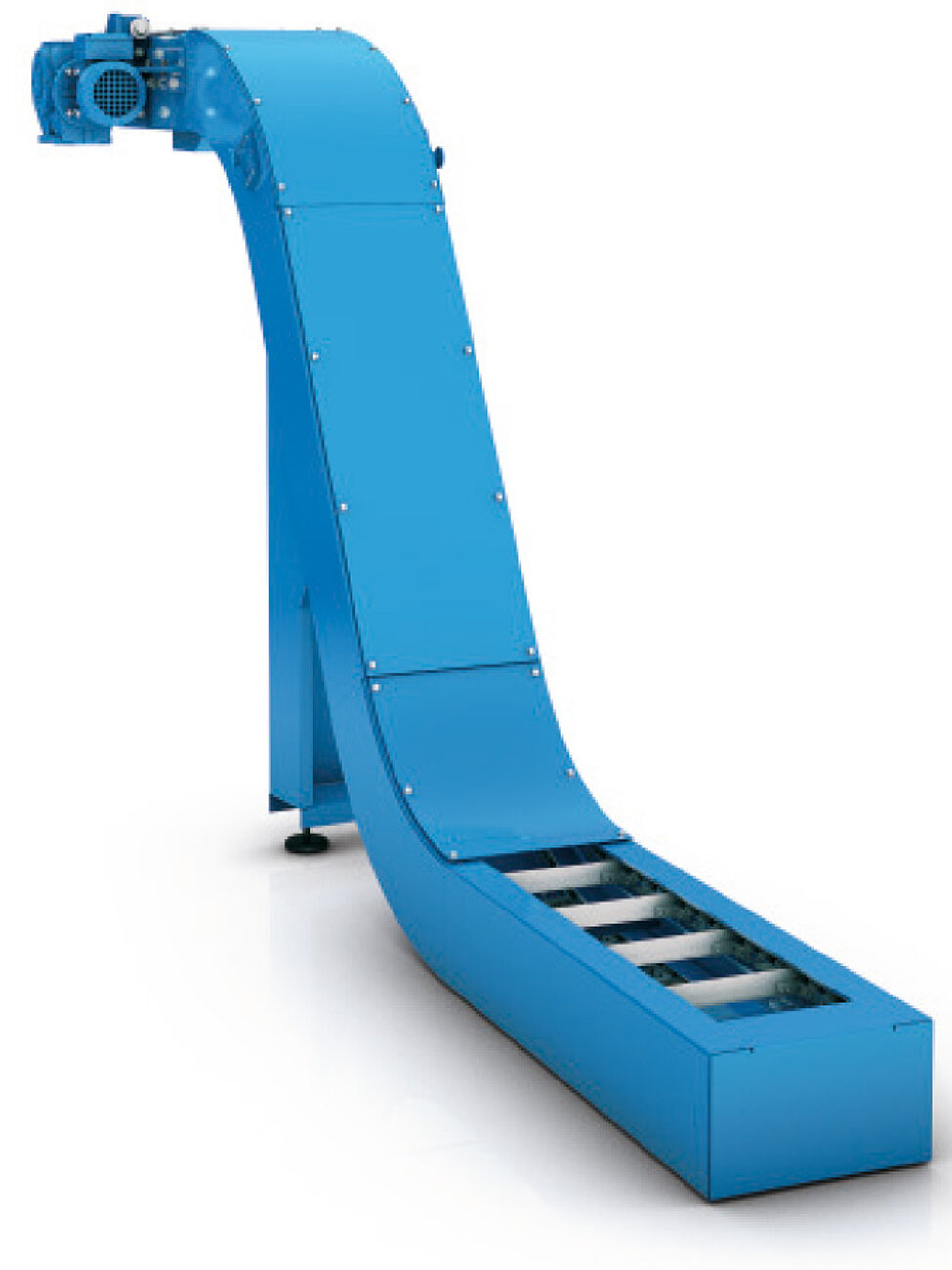

Customized incline standards – 30°, 45° and 60°
Floor mounting or as a push-in version into the machine base

The solution for small and short chips:

Often used for machining of non-ferrous metals
Can also be used for very hard, short chips
Casting chips, milling chips and sawing chips

Dimensions of conveyor housing

Possible inclines

Variable dimensions:

B_KR = Scraper belt width
B_K = Box width
B_AG = Feed width
H_B = Panel height
HF = Discharge head
AA_V = Distance between axles, vertical
L_AG = Feed length
L_AW = Discharge length
L_G = Total length of the conveyor
α = Incline angle

Standard version

Design-dependent dimensions:

H_K = Box height
H_KE = Retracted box height
L_A = Length of the tail (discharge, incl. tensioning distance)
L_U = Length of the tail (feed)

The tensioning station is located at the discharge.

^* The box height can be retracted on request.

Type	H_K [mm]	H_KE^* [mm]	L_AW min [mm]	L_A [mm]	L_U [mm]
KRF 040	140	110	500	180	73
KRF 063	216	153	620	240	111
KRF 100	360	260	1000	600	185

Dimensions as a function of the scraper belt width

Type	B_KR [mm]	B_K [mm]	B_AG [mm]
KRF 040	150	225	130
	200	275	180
	250	325	230
	300	375	280
	350	425	330
	450	525	430
	500	575	480
	600	675	580
KRF 063	150	270	130
	250	370	230
	300	420	280
	450	570	430
	550	670	530
	600	720	580
	750	870	730
	900	1020	880
KRF 100	150	300	120
	300	450	270
	375	525	345
	450	600	420
	525	675	495
	600	750	570
	750	900	720
	900	1050	870

Definitions:

B_KR = Scraper belt width
B_K = Box width
B_AG = Feed width
