Central chip disposal applications
Conveyor systems for central residue management.
Are you planning a central disposal solution within your production facility? We have already realized a large number of individual solutions. Our focus is to find the best possible and individual solution together with you.
Selection by application
Guideline values for preselection
| Type of Conveyor | Hinged belt conveyors | Scraper belt conveyors | |||
|---|---|---|---|---|---|
SRF 063 | SRF 100 | SRF 150 | KRF 063 | KRF 100 | |
| Type of Chips | wool or long chips, tufts of chips | wool or long chips, tufts of chips | wool or long chips, tufts of chips | short, broken chips up to 50 mm | short, broken chips up to 50 mm |
| Length | 1 – 60 m | 1.5 – 100 m | 1.5 – 100 m | 1 – 60 m | 1.5 – 100 m |
| Conveying volume | 7.50 m3/h, guideline value | 15.00 m3/h, guideline value | 26.00 m3/h, guideline value | 1.30 m3/h, guideline value | 3.40 m3/h, guideline value |
| Conveyor speed | 1.2 – 10 m/min | 2.2 – 12 m/min | 3 – 12 m/min | 1.2 – 10 m/min | 2.2 – 12 m/min |
| Belt width | 150 – 2100 mm | 150 – 2100 mm | 300 – 2100 mm | 150 – 1000 mm | 150 – 1000 mm |
Deviating specifications on request
Sample applications

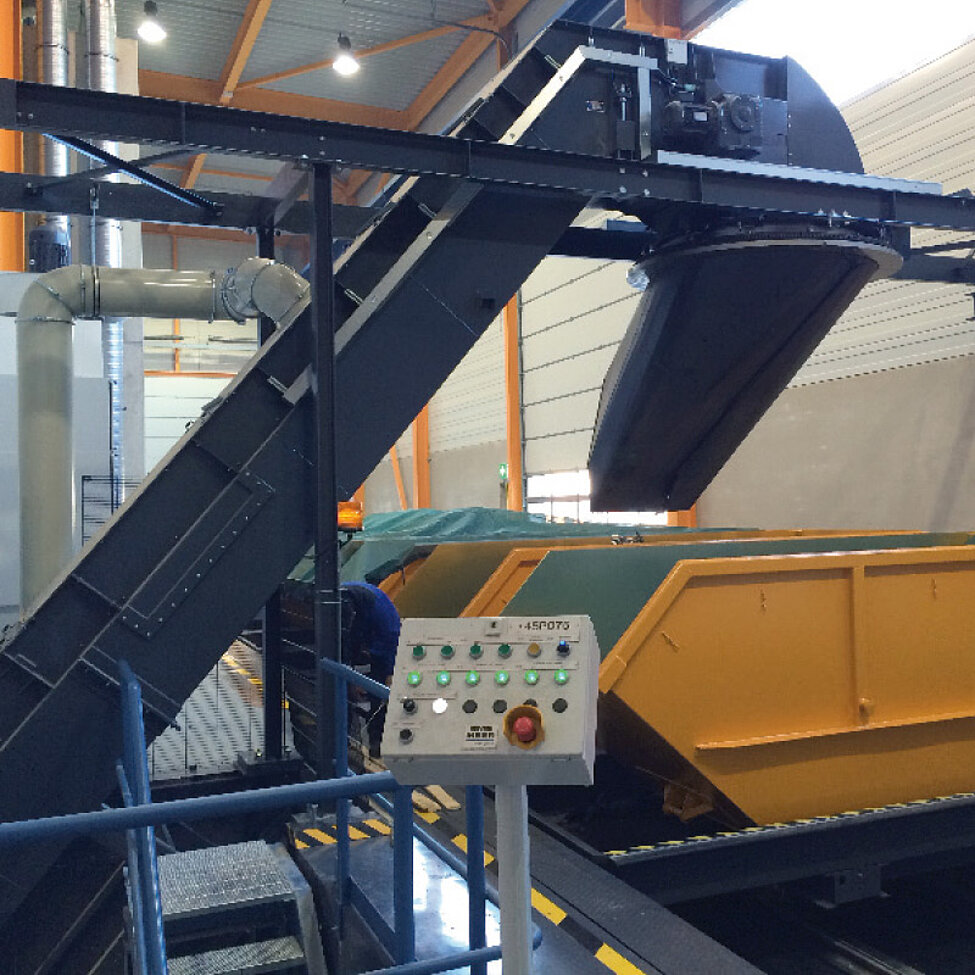

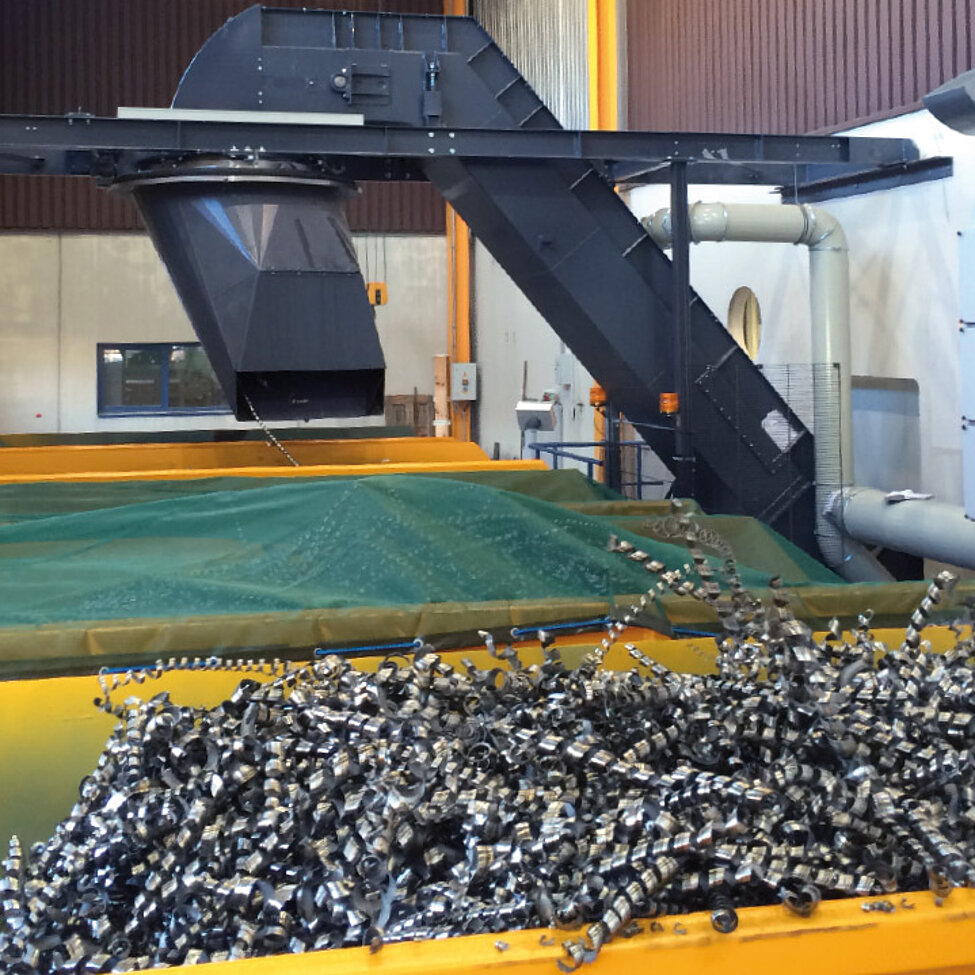

Central chip disposal and processing.

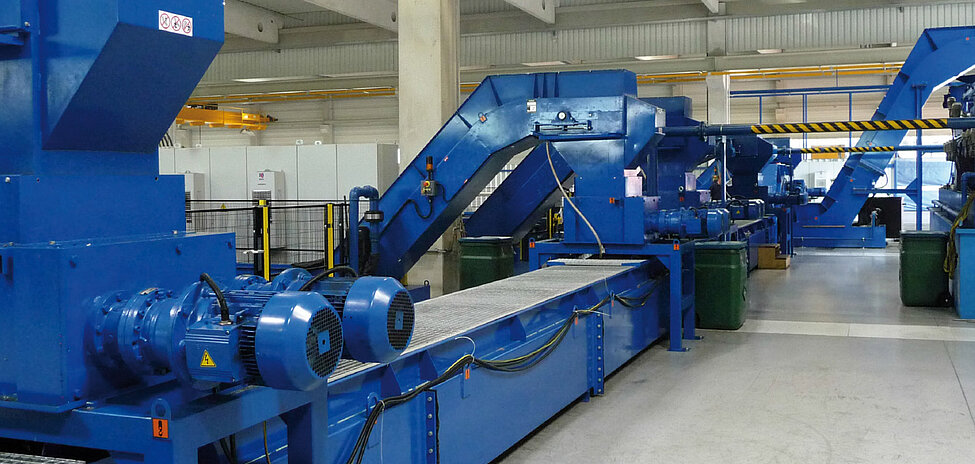

Chip separation and distribution on a peeling machine.

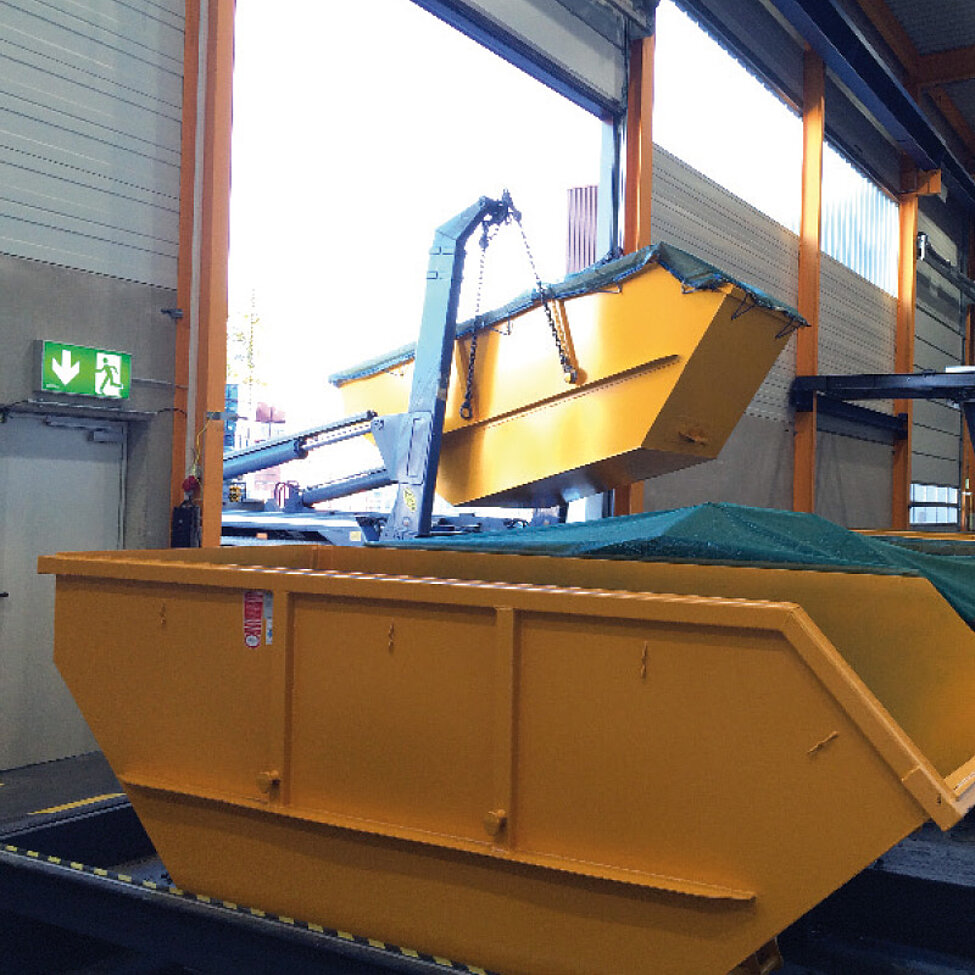

Container loading and removal.
Manual or fully automated control of the filling.
Start your inquiry
Please use the contact form for any inquiries you might have.
Matching with
Accessories and system components
Upon request, we can supply the right accessories and corresponding system components for your individual application. We are happy to assist you with planning and operational implementation of your project.
Service and spare parts
Even if installation conditions are difficult, our service team handles planning and installation of guideway protection and conveyor systems.
- Repair Service
- Predictive Maintenance
- Turn Key Solutions
The experts at out our Service Center provide the support you need.
