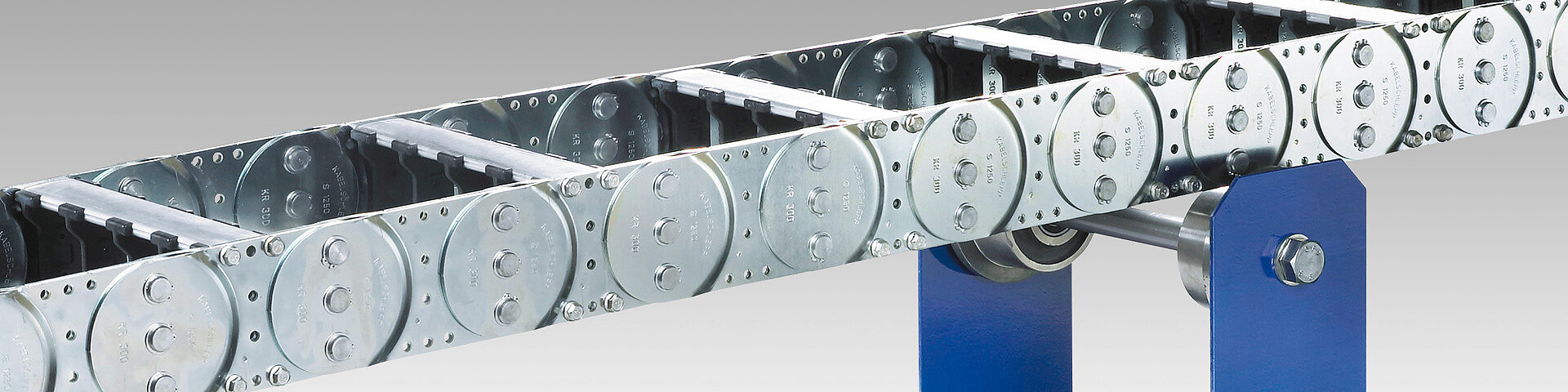

Support rollers
Ball-bearing rollers for long service life
Support rollers “Basic”
Support rollers are designed to support the upper run of the cable carrier when the maximum unsupported length is exceeded.
KABELSCHLEPP® support rollers are available for the types LS/LSX 1050, S/SX 0650, S/SX 0950, S/SX 1250 and S/SX 1800.
- Cost-effective support rollers in lightweight design
- Long service life thanks to ball bearing rollers
- Optimized installation width
- Only to be used for two-band carriers
Dimension table for standard support rollers
BE | BG | b1 | HSR | HA | A | C |
|---|---|---|---|---|---|---|
Bk + 52 | Bk + 90 | Bk + 20 | 2 KR + 15 | 2 KR - 50 | Bk - 10 | Bk + 60 |
Reinforced support rollers
Support rollers are designed to support the upper run of the cable carrier when the maximum unsupported length is exceeded.
KABELSCHLEPP® reinforced support rollers are available for the types LS/LSX 1050, S/SX 0650, S/SX 0950, S/SX 1250 and S/SX 1800.
- Solid design for extreme strain
- Long service life thanks to ball bearing rollers
- With hard manganese steel wear protection for type S and applications with high strain
- Also available in stainless steel
- Also suitable for multi-band cable carriers
Dimension table for reinforced support rollers
Type | BE | BG | DR | b1 | BR | Ds |
|---|---|---|---|---|---|---|
LS/LSX 1050 | Bk + 64 | Bk + 174 | 120 | Bk + 20 | Bk + 50 | ⌀ 200 |
S/SX 0650 | Bk + 59 | Bk + 169 | 90 | Bk + 15 | Bk + 45 | ⌀ 170 |
S/SX 0950, S/SX 1250, S/SX 1800 | Bk + 64 | Bk + 174 | 120 | Bk + 20 | Bk + 50 | ⌀ 200 |
S/SX 2500 | Bk + 74 | Bk + 184 | 220 | Bk + 30 | Bk + 60 | ⌀ 300 |
Dimension table for support stands
Type | HA | BP | a2 | a3 | d | s |
|---|---|---|---|---|---|---|
LS/LSX 1050 | 2 KR - 60 | 100 | 20 | 80 | ⌀ 18 | 8 |
S/SX 0650 | 2 KR - 45 | 80 | 40 | – | ⌀ 14 | 8 |
S/SX 0950, S/SX 1250, S/SX 1800 | 2 KR - 60 | 100 | 20 | 80 | ⌀ 18 | 8 |
S/SX 2500 | 2 KR - 110 | 100 | 20 | 80 | ⌀ 18 | 8 |
