Aluminum stay RS 2 – ­frame stay narrow, threaded joint

Properties

  • Quick to open and close
  • Aluminum profile bars for light to medium loads. Simple threaded joint
  • Available customized in 1 mm width sections.
  • Outside/inside: Threaded joint easy to release.
Stays on every 2<sup>nd</sup> section, <strong>standard (HS: half-stayed)</strong>
Stay arrangement on each chain link <strong>(VS: fully-stayed)</strong>
Bk 200 - 500 mm in 1 mm width sections

Dimensions Dimensions

<p>The maximum cable diameter strongly depends on the bending radius and the desired cable type.&nbsp;<br />Please contact us.</p>
Calculating the cable carrier length
Cable carrier length Lk: Lk ≈ LS/2 + LB
Cable carrier length Lk rounded to pitch t
<table class="table"> <thead> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <th class="t"><strong>t</strong><br>[mm]</th> <th class="hi red"><strong>h<sub>i</sub></strong><br>[mm]</th> <th class="hg"><strong>h<sub>G</sub></strong><br>[mm]</th> <th class="hgdash"><strong>h<sub>G'</sub></strong><br>[mm]</th> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="bi"><strong>B<sub>i</sub></strong><br>[mm]</th> <th class="bst red"><strong>B<sub>St</sub></strong><br>[mm]<sup>*</sup></th> <!-- Bk und BEF für alle Ketten --> <th class="bk"><strong>B<sub>k</sub></strong><br>[mm]</th> <th class="bef"><strong>B<sub>EF</sub></strong><br>[mm]</th> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="qk"><strong>q<sub>k</sub></strong><br>[kg/m]</th> </tr> </thead> <tbody> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <td class="t">125</td> <td class="hi red">72</td> <td class="hg">94</td> <td class="hgdash">104</td> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="bi"> 156 - 456 </td> <td class="bst red"> 176 - 476 </td> <!-- Bk und BEF für alle Ketten --> <td class="bk">BSt + 24</td> <td class="bef">BSt + 30</td> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="qk">12.88 - 13.71</td> </tr> </tbody> </table>
* in 1 mm width sections
KR [mm]
145 200 220 260 300 340 380 420 460 500 540 600 1,000

Order example

S1250
Type
•
400
BSt [mm]
•
RS 2
Stay variant
•
200
KR [mm]
•
St
Material
-
4750
Lk [mm]
HS
Height separation

Inner Distribution Inner Distribution

Divider systems

The divider system is mounted on each crossbar as a standard – on every 2nd chain link for stay mounting (HS). As a standard, dividers or the complete divider system (dividers with height separations) are movable in the cross section (version A).

For applications with lateral acceleration and rotated by 90°, the dividers can be attached by simply clipping onto a socket (available as an accessory). The socket additionally acts as a spacer between the dividers and is available in 1 mm increments between 3 – 50 mm (version B).

Divider system TS0
without height separation

Vers.aT min
[mm]		ax min
[mm]		ac min
[mm]		nT min
A12,51510–

The dividers can be moved in the cross section.

Divider system TS1
with continuous height separation

Vers.aT min
[mm]		ax min
[mm]		ac min
[mm]		nT min
A12.515102

The dividers can be moved in the cross section.

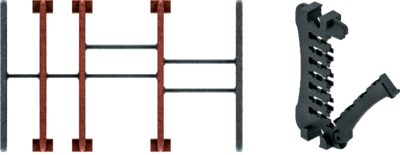

Divider system TS3
with height separation consisting of plastic partitions

As a standard, the divider version A is used for vertical partitioning within the cable carrier. The complete divider system can be moved within the cross section.

<p><strong>Trennsteg Version A</strong></p>
Vers.aT min
[mm]		ax min
[mm]		ac min
[mm]		nT min
A10*/1214102

* For VR0

The dividers are fixed by the partitions, the complete divider system is movable in the cross section.

The dividers are fixed by the partitions, the complete divider system is movable in the cross section.

ax (center distance of dividers) [mm]

ac (nominal width of inner chamber) [mm]

141619232428293233343839
101215192024252829303435
434448495458596468697478
394044455054556064657074
7980848889949699112
7576808485909295108

When using partitions with ax > 49 mm we recommended an additional preferential central support.

Order example

TS3
Divider system
•
A
Version
•
3
nT
•
K1
•
K4
Chamber
•
34
•
38
ax
-
VR1
-
VR3
Height separation

Please state the designation of the divider system (TS0, TS1,...), version and number of dividers per cross section [nT]. In addition, please also enter the chambers [K] from left to right, as well as the assembly distances [aT/ax] (as seen from the driver).

If using divider systems with height separation (TS1, TS3) please also state the positions [e.g. VD23] viewed from the left driver belt. You are welcome to add a sketch to your order.

End connectors End connectors

Connection point
F – fixed point
M – driver

Connection type
A – threaded joint outside (standard)
I – threaded joint inside
H – threaded joint, rotated 90° to the outside
K – threaded joint, rotated 90° to the inside

Connection surface
I – connection surface inside (standard)
A – connecting surface outside

Caution: The standard connection variant FAI/MAI is only possible from Bk of 125 mm.

Order example

Steel
Steel
End connector
•
F
•
M
Connection point
A
A
Connection type
I
I
Connection surface

We recommend the use of strain reliefs at the driver and fixed point.
