TKR0150
TKR0150
Stay Variants
TKR0150.030
more details
Stay Variants
TKR0150.030

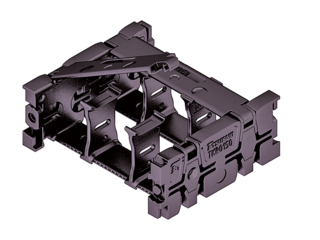

Frame with outside detachable crossbar
- Low-vibration plastic frame with particularly long service life thanks to molded chain links.
- Outside: Swivable and detachable.
Installation dimensions
Installation dimensions
UNSUPPORTED ARRANGEMENT
| KR [mm] | H [mm] | LB [mm] | UB [mm] |
|---|---|---|---|
| 40 | 120 | 156 | 70 |
| 50 | 140 | 187 | 80 |
| 75 | 190 | 266 | 105 |
LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.
Sagging of the cable carrier is technically permitted for extended travel lengths, depending on the specific application.
Intrinsic cable carrier weight qk = 0.3 kg/m at Bi 20 mm. For other inner widths, the maximum additional load changes.
Speed
up to 5 m/s
Acceleration
up to 200 m/s2*
Travel length
up to 1.75 m
Additional load
up to 2.0 kg/m
* For values > 20 m/s2, please contact us, we are happy to advise you!
